CCTV Drain Survey Reading
See exactly what is happening inside your drains before you buy a house, make an insurance claim, build an extension or clear a blockage that keeps coming back. We survey drains across Reading with HD push and crawler cameras and give you a full written report. Engineers cover all RG postcodes, with a quote provided on request.
To book a CCTV drain survey in Reading, or for an emergency inspection 24/7:
07717 449094
When a CCTV Drain Survey Is Worth Doing
A CCTV survey replaces guesswork with evidence. Instead of digging to find a problem, or clearing the same blockage over and over, you see the exact fault, where it is and how bad it is, on screen and in a report.
The most common reasons Reading customers book a survey:
-
Buying a property in ReadingA standard homebuyer survey does not check the drains. A CCTV survey finds root damage and shared drain issues before you commit.
-
A blockage that keeps returningRepeated blockages on the same run almost always mean a structural fault. The camera finds it.
-
Planning an extension or build-overA build-over survey maps the drain run and is needed for Thames Water approval before you build.
-
Making an insurance claimInsurers require timestamped footage and a technical report to assess drainage damage claims.
-
Signs of subsidence or a smell you cannot traceA cracked or leaking drain can wash away ground support. The survey confirms whether the drain is the cause.
Whatever the reason, the output is the same: a clear picture of your drainage and a report you can act on, share with a solicitor or send to an insurer.
The Defects a CCTV Camera Reveals
Reading's drainage is mostly Victorian and Edwardian clay under the older streets, with pitch fibre and plastic on mid-century and modern estates. These are the faults our cameras record across the RG postcodes.
Root Intrusion
Fine roots entering at clay joints, then thickening into a root mass. The camera shows where they enter and how far the ingress runs, so the repair can be targeted rather than guessed.
Cracks and Fractures
Longitudinal and circumferential cracks in clay and pitch fibre pipe from age, ground movement and traffic loading. The survey grades the severity and marks the exact position.
Displaced and Open Joints
Sections of pipe that have dropped or pulled apart at the socket, common in Reading's older terraces. These catch debris and leak into the surrounding ground.
Scale and Encrustation
Limescale and mineral build-up narrowing the bore in hard-water Berkshire pipework, and rust tuberculation inside cast iron. The camera shows how much bore is left.
Collapsed and Deformed Pipe
Partial and full collapses, and pitch fibre that has gone oval. The survey establishes whether the run can be relined or needs excavation and replacement.
Standing Water and Misconnections
Bellied pipe holding water, poor falls, and foul drains wrongly connected to surface water. All are common findings on Reading properties that have been altered over the years.
Access, Clean if Needed, Record, Report
A survey is only useful if the camera can actually see the pipe wall and if the findings are recorded properly. We follow a set method on every job in Reading.

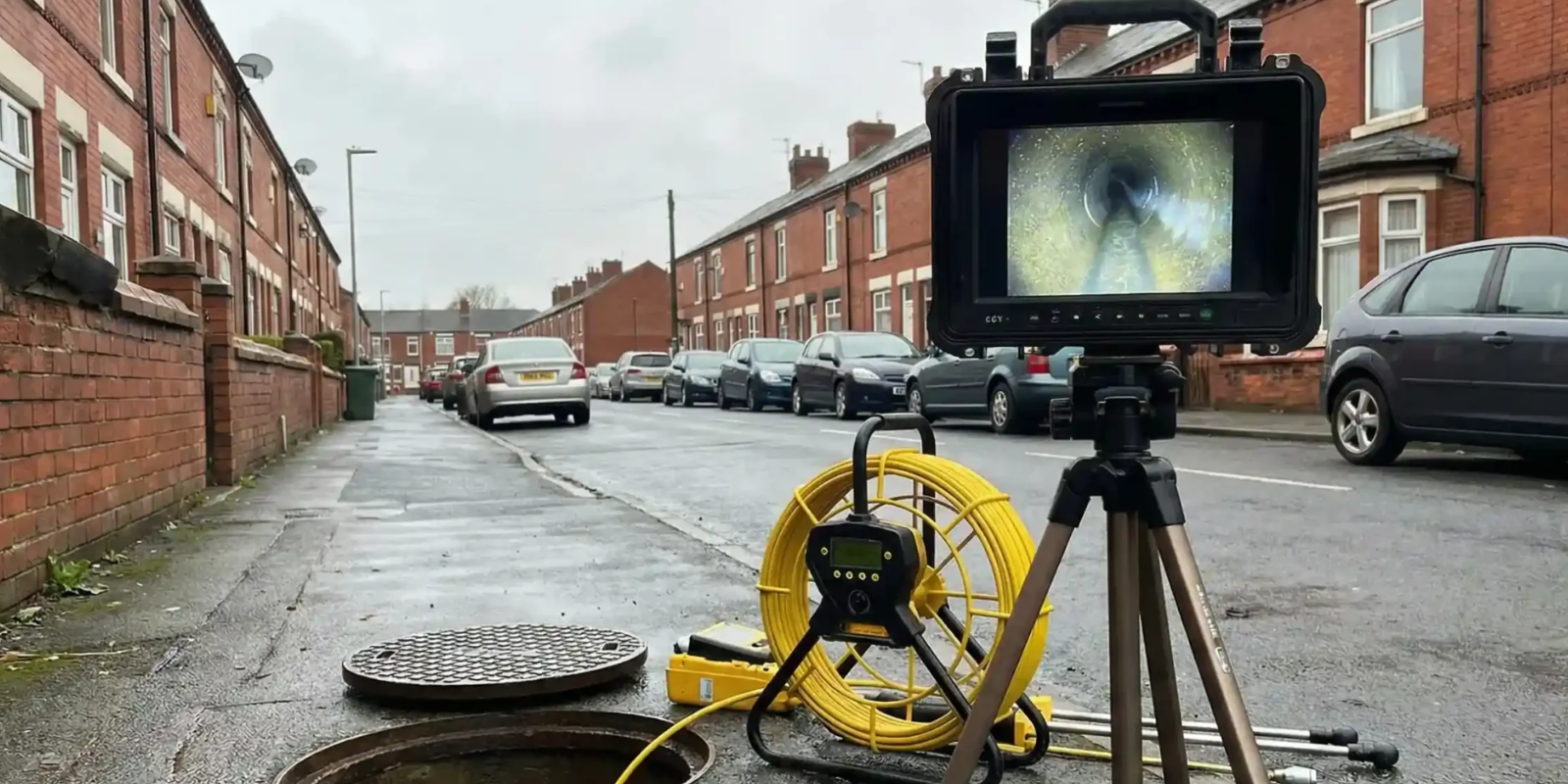

We lift the inspection chambers to establish the drain layout and the direction of flow. If the drain is blocked or heavily silted, we jet it clear first so the camera has a clear view, and we tell you before doing so. We then run an HD push camera through smaller domestic runs, or a crawler camera for larger commercial pipes, recording the full length with distance metering and a spoken commentary.
Afterwards you get a written report with still images, video, pipe sizes and gradients, defects coded to industry standard, and clear recommendations, whether that is no action needed, a jetting clean, a reline or an excavated repair.
What a CCTV drain survey in Reading involves:
-
Chamber lifting and drain tracingEstablishing the layout, the direction of flow and where the run connects
-
Pre-clean jetting where requiredOnly if the drain is blocked or silted, so the camera can see the pipe wall
-
HD camera survey with meteringPush camera for domestic runs, crawler for large commercial pipes, with distance logging
-
Written report and recommendationsCoded defects, images, video and clear next steps you can act on or forward
How a CCTV Drain Survey Booking Works in Reading
From your call to a report you can act on - here is exactly what happens at each step.
You Call or Contact Us
Phone 07717 449094 or use the contact form. Tell us why you need the survey - a purchase, a claim, a build-over or a recurring blockage - and we book a slot.
We Give You a Quote
We provide an upfront quote based on the property size and access. If pre-clean jetting looks likely, we tell you before the visit.
On-Site Survey
Our engineer traces the drains, jets them clear only if needed, and records the full run in HD with distance metering and commentary.
Written Report Delivered
You receive a written report with images, video, measurements, coded defects and clear recommendations, normally within one to two working days.
Every Reading Postcode We Cover for CCTV Drain Surveys
We survey drains in every Reading residential and commercial postcode. The table shows our main coverage areas and the findings we typically record in each.
| Postcode | Area | Common Survey Findings |
|---|---|---|
| RG1 | Reading Town Centre | Victorian clay, open joints, root ingress, shared drain runs |
| RG2 | Whitley, Shinfield | Post-war clay and plastic, scale, poor falls and standing water |
| RG4 | Caversham, Emmer Green | Victorian and Edwardian clay, displaced joints, root damage |
| RG5 | Woodley | 1960s-70s pitch fibre deformation, plastic pipe misconnections |
| RG6 | Earley | Newer UPVC, build-over surveys, construction debris |
| RG7 | Burghfield, Mortimer, Theale | Rural clay runs, root ingress, septic and cesspit connections |
| RG8 | Pangbourne, Goring | Older village clay, fractures, joint displacement |
| RG14 | Newbury | Mixed age stock, cast iron scale, pre-purchase surveys |
| RG30 | Tilehurst, Southcote, Calcot | 1930s clay, cracks and root ingress, recurring blockage runs |
| RG31 | Tilehurst West, Purley | Interwar to post-war clay and pitch fibre, structural defects |
Every Situation a CCTV Survey Covers
We carry out CCTV drain surveys in Reading for all of these:
- Pre-purchase property surveysA full health check of the underground network before you buy
- Pre-lease and pre-handover surveysCondition reports for commercial tenants, landlords and managing agents
- Insurance claim reportsTimestamped footage and technical reports in the format UK insurers require
- Build-over and drainage mappingLocating and mapping drain runs before an extension, for water authority approval
- Recurring blockage investigationFinding the structural cause when standard clearance keeps failing
- Post-repair and post-reline verificationConfirming a repair or lining is sound before the job is signed off
- Commercial compliance inspectionsHeavy-duty crawler surveys of large sewers for retail, industrial and office sites
What Reading Customers Say About Our CCTV Drain Surveys
"Booked a survey before buying a Victorian terrace in Reading. They found a displaced joint and root intrusion the homebuyer report never mentioned. The written report let us renegotiate the price to cover the repair."
"We needed a build-over survey for a kitchen extension. Precision Draincare mapped the drain, produced the plan and report we needed for Thames Water, and turned it around in two days. Straightforward and well priced."
"Drain kept blocking every couple of months. The survey showed a cracked section holding debris. They jetted it clear for the camera, recorded the fault and quoted to reline it. First company to actually find the cause."
These reviews are from customers across Reading and Berkshire. You can read every review, see our photos and check our opening hours on our Google Business Profile.
Frequently Asked Questions About CCTV Drain Surveys in Reading
What is a CCTV drain survey?
+
A CCTV drain survey is a diagnostic inspection where our engineer feeds a specialist waterproof camera through your underground drains and sewers. It shows the exact condition of the pipe on screen, so cracks, root intrusion, displaced joints, scale build-up and collapses can be found and located precisely without any digging. You receive a written report with still images and video.
How much does a CCTV drain survey cost in Reading?
+
The cost depends on the size of the property, how accessible the inspection chambers are, and whether the drain needs jetting to clear it before the camera can see the pipe. A standard residential survey is at the lower end, a large commercial site is priced separately. We give you an upfront quote before we book the survey in.
How long does a CCTV drain survey take in Reading?
+
For a standard residential property in Reading, a straightforward survey usually takes between one and two hours on site. Larger commercial sites, or drains that need pre-cleaning first, take longer. The written report normally follows within one to two working days.
Do I need a CCTV drain survey before buying a house in Reading?
+
It is not a legal requirement, but we strongly recommend it. A standard homebuyer survey does not inspect the underground drainage. A dedicated CCTV drain survey identifies hidden structural damage, root intrusion and shared drain issues before you commit, and the report can support a price renegotiation if problems are found.
Do you provide a report I can send to my insurer or solicitor?
+
Yes. Every survey comes with a written report containing timestamped video footage, still images, pipe measurements and clear findings. It is prepared in the format UK insurers and conveyancing solicitors expect, so you can submit it directly to support a claim or a purchase.
Do you offer emergency CCTV drain inspections in Reading?
+
Yes. Drainage problems do not keep office hours, so we provide rapid-response CCTV inspections across Reading for severe blockages, sewage backups and suspected collapses, 24 hours a day including weekends and Bank Holidays.
Will you jet the drain before the survey?
+
Only if it is needed. If the drain is blocked or heavily silted, the camera cannot see the pipe wall, so we clear it with high-pressure jetting first. If the drain is already running, we survey it as it is. We tell you which applies and confirm any extra cost before proceeding.
CCTV Drain Surveys Across All Reading Neighbourhoods
We cover every part of Reading and the surrounding Berkshire towns for CCTV drain surveys, drainage mapping and pre-purchase drain inspections.
